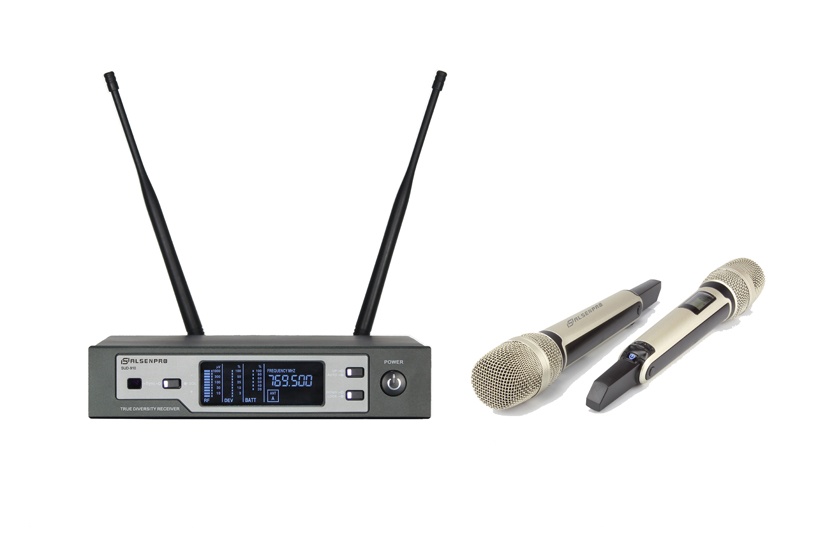

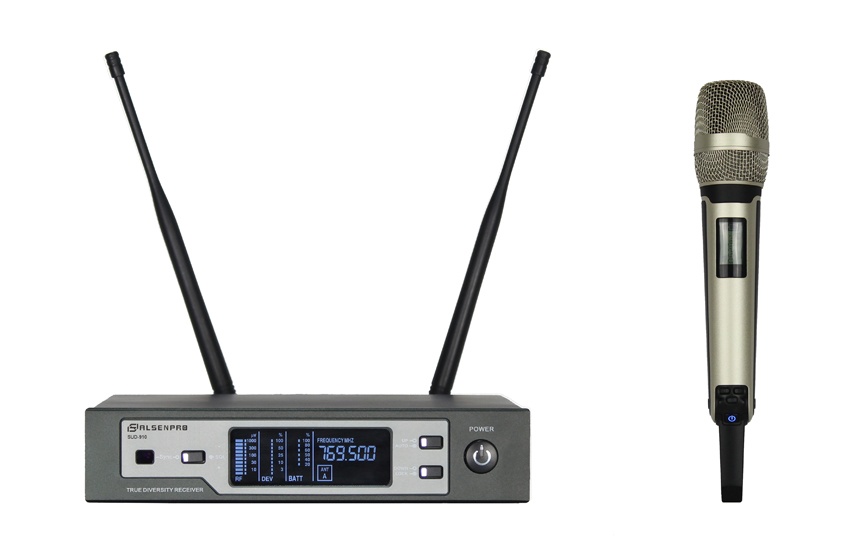

FEATURES
UHF 600-928MHz frequency range
True diversity for maximun range and dropout protection
PLL Synthesized circuit, pre-set 100 selectable frequencies
Super high anti-interference support 20pcs simultaneous use
IR sync downloading the frequency from receiver
LCD display shows status of frequency, AF and RF signal etc
EIA standard 1/2U rack-mountable metal chassis
Up to 500 feet(150m) line-of-sight operating range
Designed for professional stage and performance applications
SPECIFICATION
Comprehensive Performance:
Frequency Range:----------------------------------------- 600-928MHz
Modulation Mode:------------------------------------------------------- FM
Dynamic Range:-------------------------------------------------- >100dB
Frequency Response:----------------------------- 60Hz-17KHz±3dB
Total Harmonic Distortion:---------------------------- <0.5% at 1KHz
Signal/Noise Ratio:---------------------------------------------- ≥105dB
Receiver:
Frequency Range:----------------------------------------- 600-928MHz
Receive Sensitivity:------------------------- -110dBm (sinad ≥30dB)
Signal/Noise Ratio:---------------------------------------------- >105dB
Power Supply:------------------------------------ DC12V-18V / 500mA
Dimensions：-------------------------------------------210*170*44mm
Audio Output:---------------- 1*XLR socket, 1*6.3mm jack socket

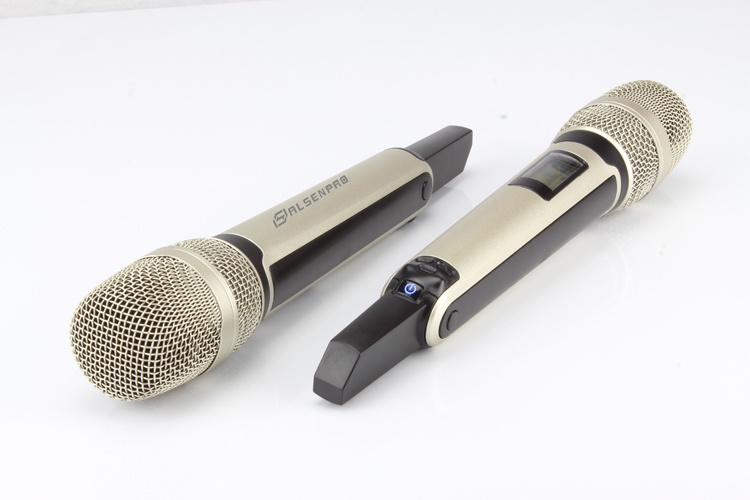

Transmitter:
Frequency Range:----------------------------------------- 600-928MHz
RF Power:------------------------------------------------------------ 10mW
Microphone Type:----------------------------------------------- Dynamic
Directivity：------------------------------------------------------- Cardioid
Battery Voltage:--------------------------------- 3V (2x1.5V AA Battery)
Power Consumption:------------------ 8 hours, battery-dependent
IR Synchronization Adjustable Frequency Series
