FEATURES
UHF 600-928MHz frequency range
True diversity for maximun range and dropout protection
PLL Synthesized circuit, pre-set 200 selectable frequencies
Super high anti-interference support 10pcs simultaneous use
IR sync downloading the frequency from receiver
LCD display shows status of frequency, AF and RF signal etc
EIA standard 1U rack-mountable metal chassis
Up to 500 feet(150m) line-of-sight operating range
Designed for professional stage and performance applications
SPECIFICATION
Comprehensive Performance:
Frequency Range:------------------------------------------- 600-928MHz
Modulation Mode:---------------------------------------------------------- FM
Dynamic Range:---------------------------------------------------- >100dB
Frequency Response:------------------------------- 60Hz-17KHz±3dB
Total Harmonic Distortion:------------------------------ <0.5% at 1KHz
Signal/Noise Ratio:------------------------------------------------ ≥105dB

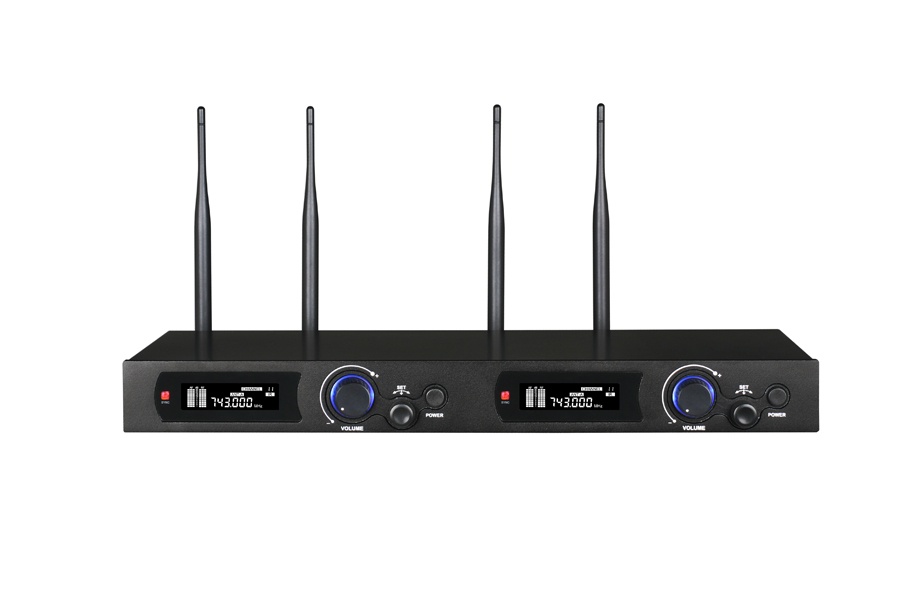

Receiver:
Frequency Range:------------------------------------------- 600-928MHz
Receive Sensitivity:--------------------------- -110dBm (sinad ≥30dB)
Signal/Noise Ratio:------------------------------------------------- >105dB
Power Supply:--------------------------------------- DC12V-18V / 500mA
Dimensions：----------------------------------------------210*170*44mm
Audio Output:-------------------- 1*XLR socket, 1*6.3mm jack socket

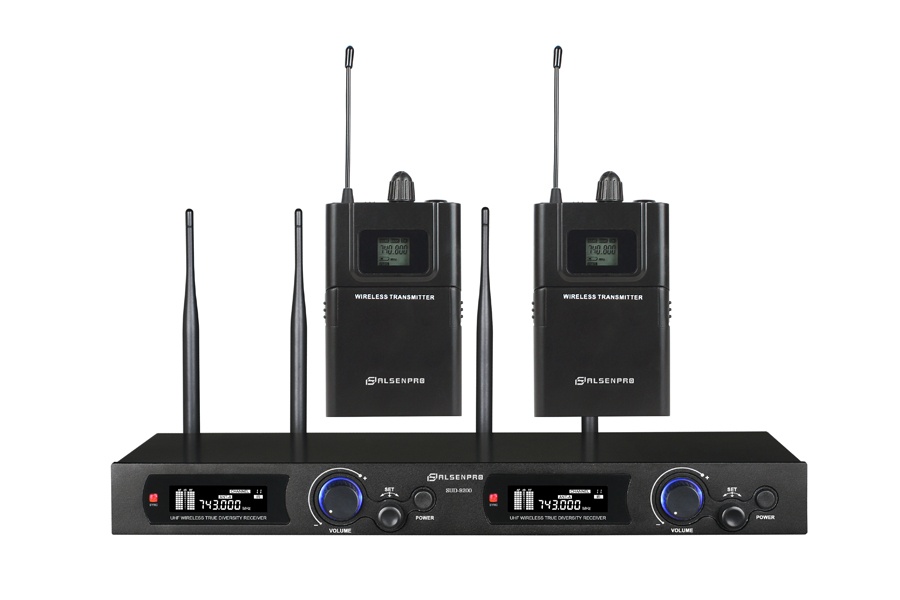

Transmitter:
Frequency Range:-------------------------------------------- 600-928MHz
RF Power:--------------------------------------------------------------- 10mW

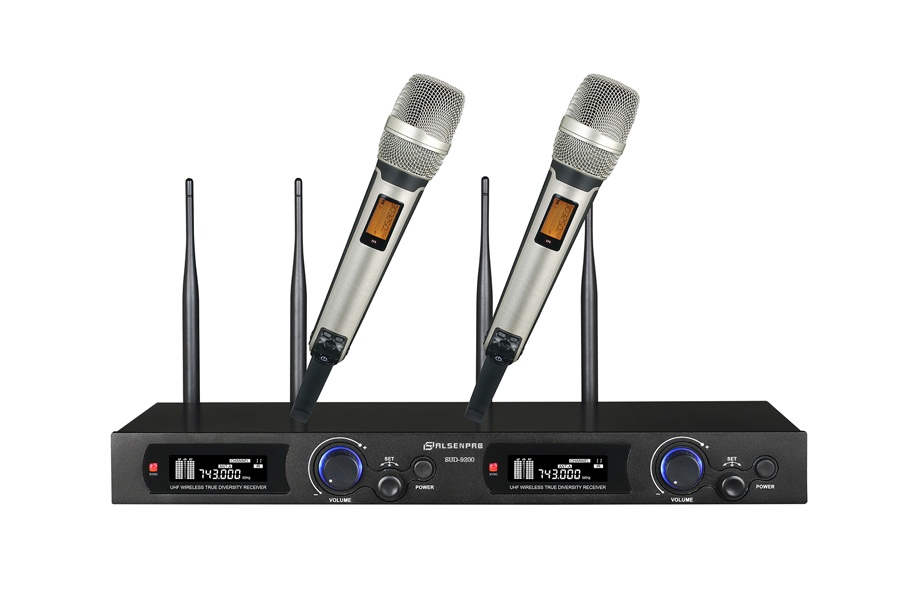

Microphone Type:-------------------------------------------------- Dynamic
Directivity：----------------------------------------------------------- Cardioid
Battery Voltage:------------------------------------- 3V (2x1.5V AA Battery)
Power Consumption:--------------------- 8 hours, battery-dependent
IR Synchronization Adjustable Frequency Series
