Features:

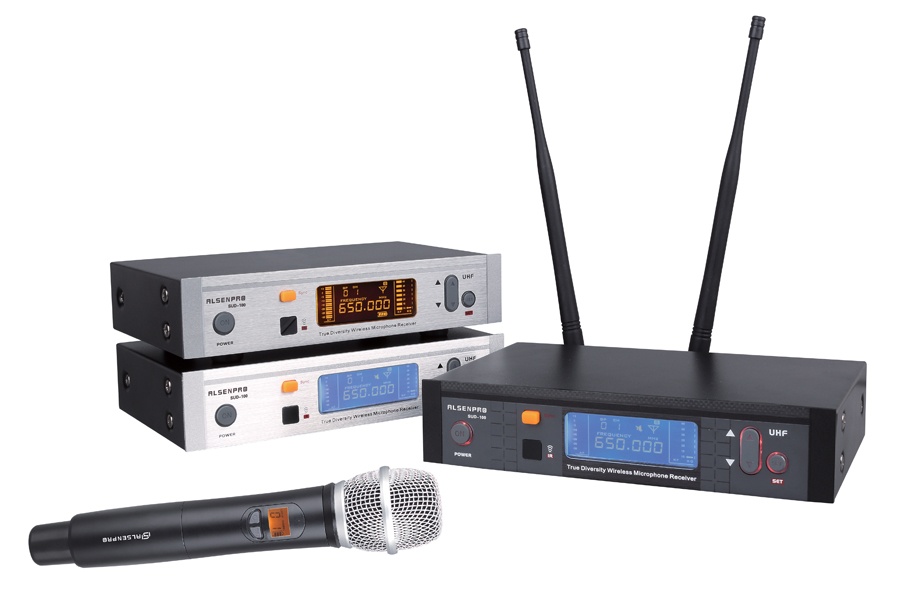

1.IR synchronization UHF wireless microphone
2.Receiving mode: True Diversity
3.With 100 optional frequencies
4.LCD display working statue
5.Smart handheld microphone and patent mould design receiver.
6.Reliable SMT technology
7.Dual filter design makes better anti-interference capacity
8.High performance mic capsule
9.Digital volume control.
10.balanced and line output available.
Technical Specifications
Receiver:
Main Frame Size: EIA standard 1U rack/ 1/2 rack unit
Channel: Dual channels / single channel
Carrier Freq. Range: UHF 500-860MHz
Receiving Mode: True-diversity receiving
Oscillation: PLL synthesizer
Sensitivity: 4dB μ V, at S/N >60Db
Max deviation range: ±45KHz
S/N ratio: >105dB (A)
T.H.D.: <0.5% @ 1KHz
Frequency response: 50Hz-18KHZ +0dB / -3dB
Handheld Transmitter
Carrier Frequency Range: UHF500~860MHz
Oscillation: PLL synthesizer
Carrier Power: 7mW
Harmonic radiation: <-80dBm
Max deviation range: ±45KHz
Mic. Capsule: Dynamic
Battery: US881H:9V / US882H:AAX2
Power Consumption: <35mA
Body pack transmitter
Carrier Frequency Range: UHF500~860MHz
Oscillation: PLL synthesizer
Carrier Power: 7Mw
Harmonic radiation:<- 80dBm
Max deviation range: ±45KHz
Mic. Capsule: Dynamic
IR Synchronization Adjustable Frequency Series
