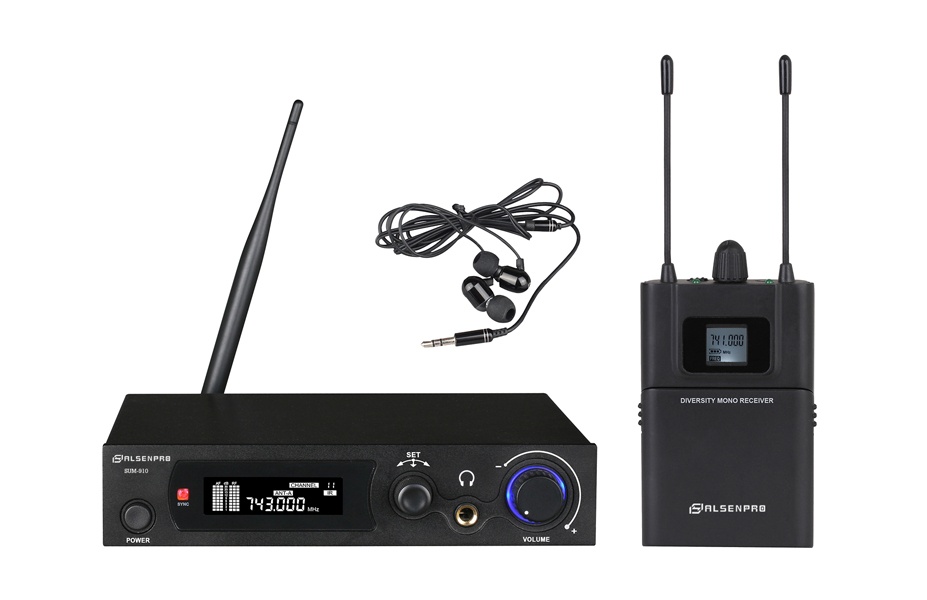

FEATURES
UHF 600-937MHz frequency range
Mono Outputs, four levels RF output levels selectable
True diversity for maximum range and dropout protection
PLL Synthesized circuit
Pre-set 100(10*10) selectable frequencies
IR sync downloading the frequency from receiver
LCD display shows the RF level, AF level, channel and frequency.
EIA standard 1U rack-mountable metal chassis
Up to 200m line-of-sight operating range
Designed for professional stage performance applications
SPECIFICATION
Receiver(Belt-pack)
Frequency Range: -----------------------------600-937MHz
Transmission Method: ----------------------------FM, Mono
Frequency Response: ------------------------60Hz-17KHz
Total Harmonic Distortion: ----------------<0.7% at 1KHz
Signal/Noise Ratio:---------------------------------- ≥105dB
Earphone output:------------ 3.5mmφ/ 16ohms 105mW
Receiving Sensitivity:------------------ 10dBuV(80dB S/N)
Battery Voltage:---------------------- 3V (2x1.5V AA Battery)
Power Consumption:------ 8 hours, battery-dependent
Transmitter
Frequency Range:------------------------------ 600-937MHz
Transmission Method:----------------------------- FM, Mono
Transmitter Power:------------------------- 5/10/30/100mW
Frequency Response:-------------------------- 50Hz-17KHz
Total Harmonic Distortion:----------------- <0.5% at 1KHz
Deviation:-------------------------------------------------- 45KHz
Input impedance:-------------------------------------- 32ohms
Power Supply:------------------------ DC12V-18V / 1000mA
